Mission Magnum XP Oil Sands Slurry Pump Reverse Engineer With Closed Impellers

Mission Magnum XP Oil Sands Slurry Pump Reverse Engineer with New Design of Closed Impellers

Introduction:

The Mission Magnum XP is ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, or just plain tough to pump. The Magnum XP 14/12-22 can delivre flowrates up to 1700M3/HR and head pressure up to 164 meters.

The compact overall dimensions of the Magnum XP make it an excellent choice for high volume mobile and stationary applications where a small footprint is critical.

The Magnum XP is designed for continuous operation with minimal maintenance. The low stuffing box pressure and extra heavy

shaft design are engineered to provide manimum seal life. The unique casing flow divider cuts the radial load in half, doubling bearing life. The heavy duty bearings are permanently lubricated to minimize maintenance.

Besides the original design of Mission Magnum XP pumps, we have updated this pump with our new design with the casing divider eliminated, and impeller changed to closed type. We found better performance by this new design. If you are interested, get back to us any minute.

Typical Applications:

Sand Slurry

Supply boat mud transfer

Slag

Fly ash

Bottom Ash

Dredge tailings

Food processing

Paper pulp processing

Waste slurries

Sewage

Fluid Supercharging

Spent liquor

Nickel shot

Copper bauxite and quarry slurries

lead and zinc ore and tailings

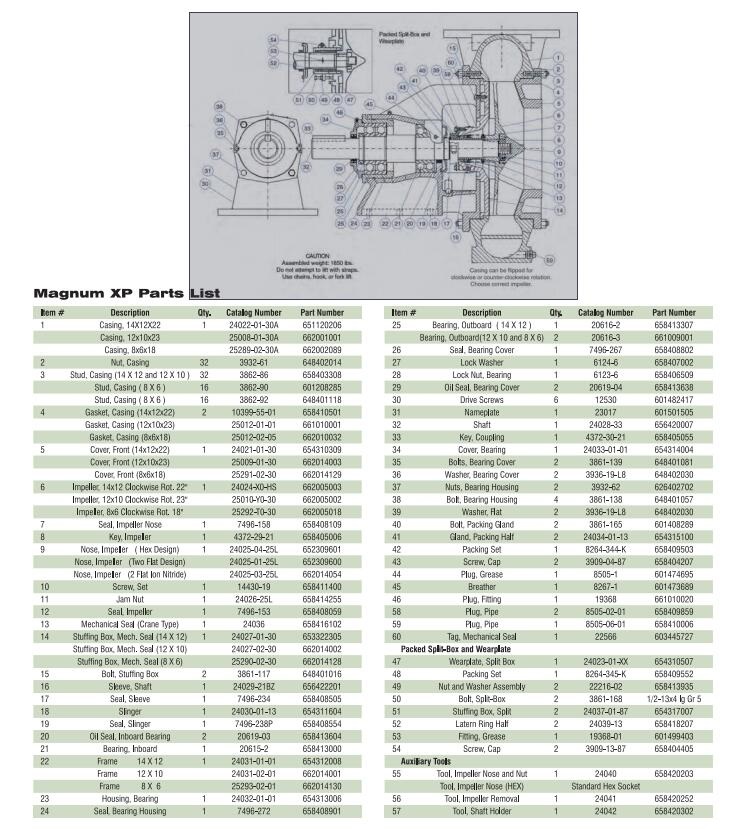

Stucture with Parts List:

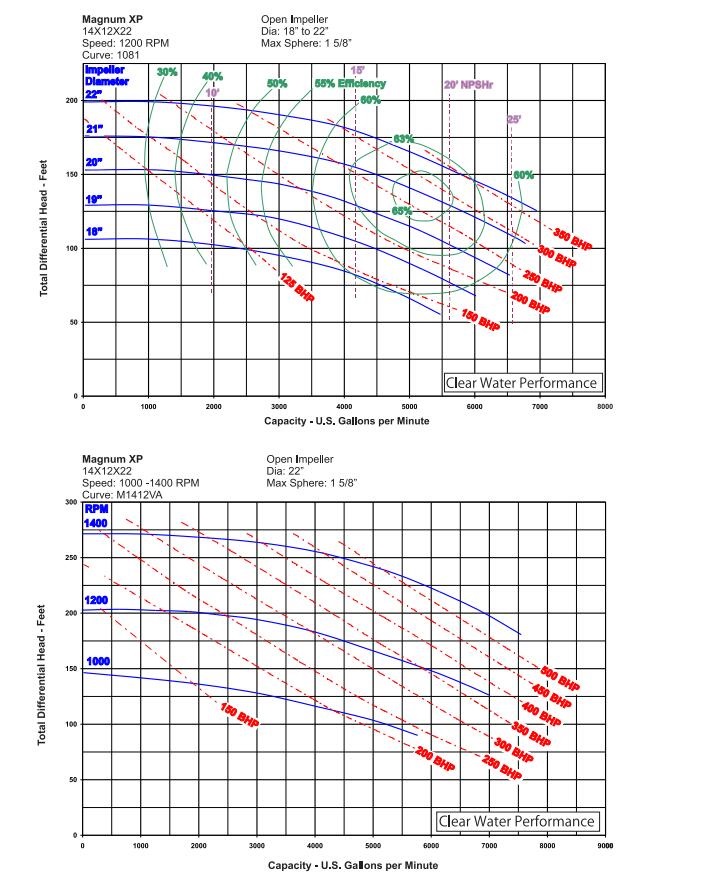

Performance Curves:

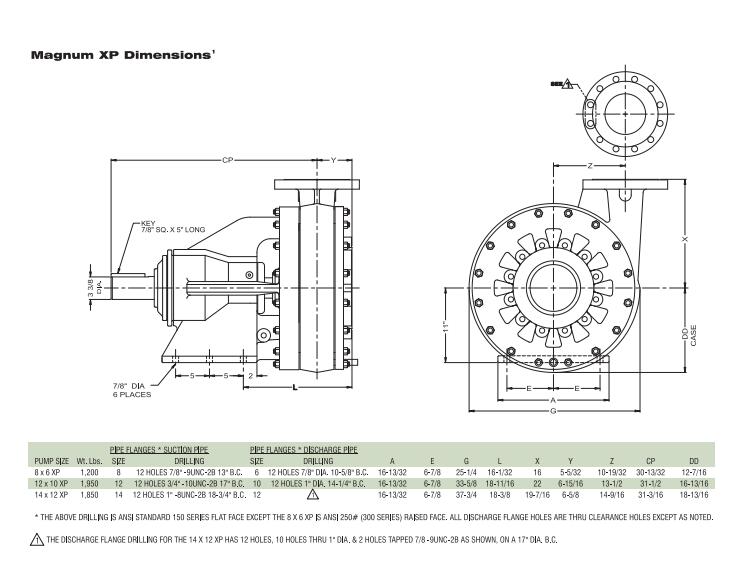

Outline Dimensions:
